Trimming tools

For the segment of aluminum die casting you will find several reference tools with different concepts for the trimming process.



Trimming tool - movie:



For more movies visit our YouTube-Channel http://www.youtube.com/user/aulbachtrimmingtec



References:

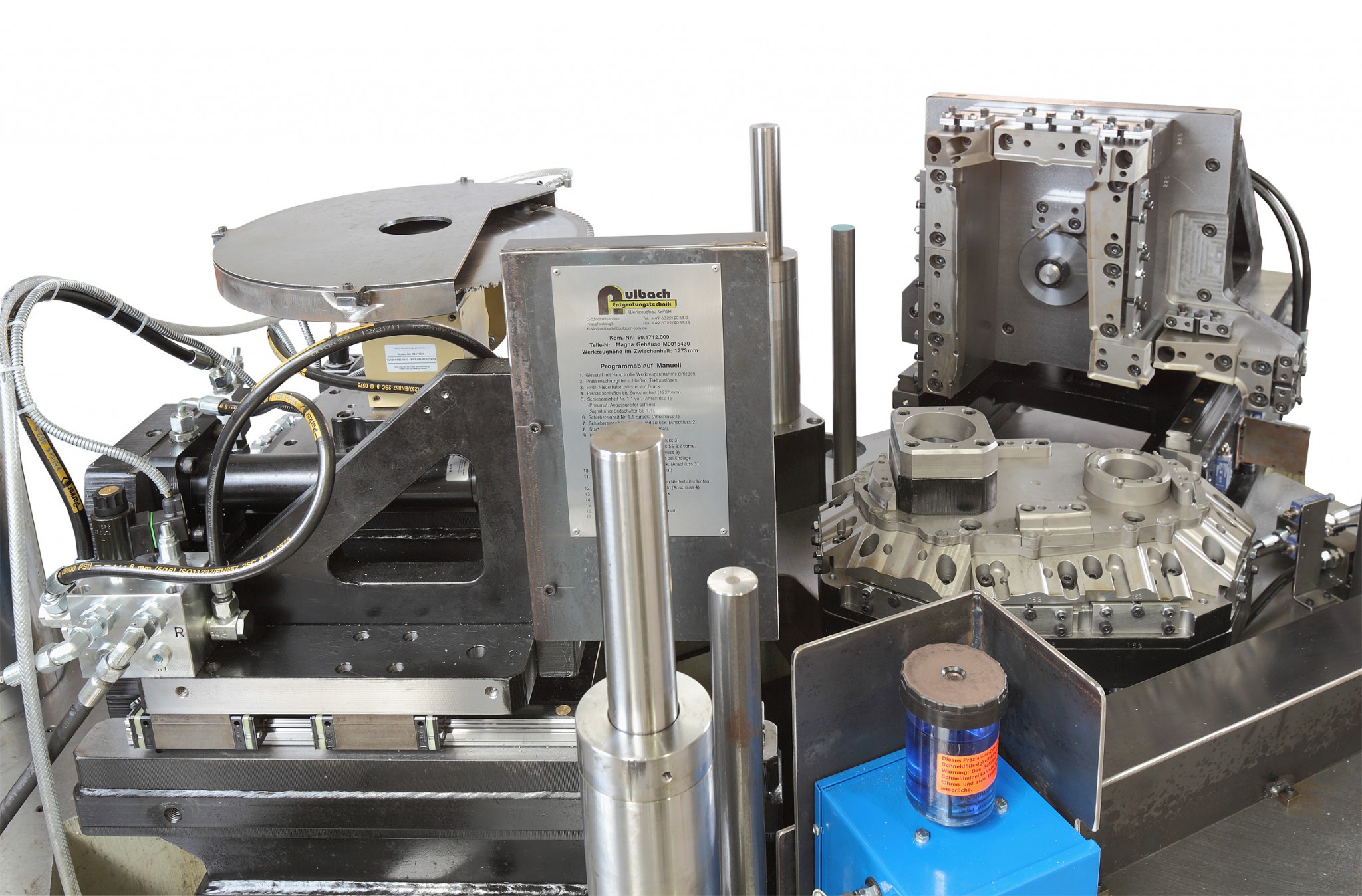

Trimming tool for gear box



Size	1800 x 1250 x 1110 mm
Weight	5400 kg
hyd. side sliders	5





• sawing unit
• trimming upwards
• pneu. grapper
• lubrication







Trimming tool for gear box



Size	1600 x 1550 x 1080 mm
Weight	3200 kg
hyd. side sliders	8





• movable cavity for easy loading and unloading
• sensors







Trimming tool for flange



Size	900 x 500 x 485 mm
Weight	1200 kg
hyd. side sliders	non





• 6 different cavities could be mounted into the tool
